RIS12*-Ex I.S. Strip Light for Area Lighting
Model options
RIS12S-Ex (0.8 m) RIS12M-Ex (1.5 m)RIS12L-Ex (2.2 m)
Suitability:
The RIS12*-Ex strip light is Intrinsically Safe and designed for area illumination in underground coal mines, petrochemical environments and underground hardrock mines.
Key Features:
- Zone 0 environment
- Flexible construction
- High ingress protection

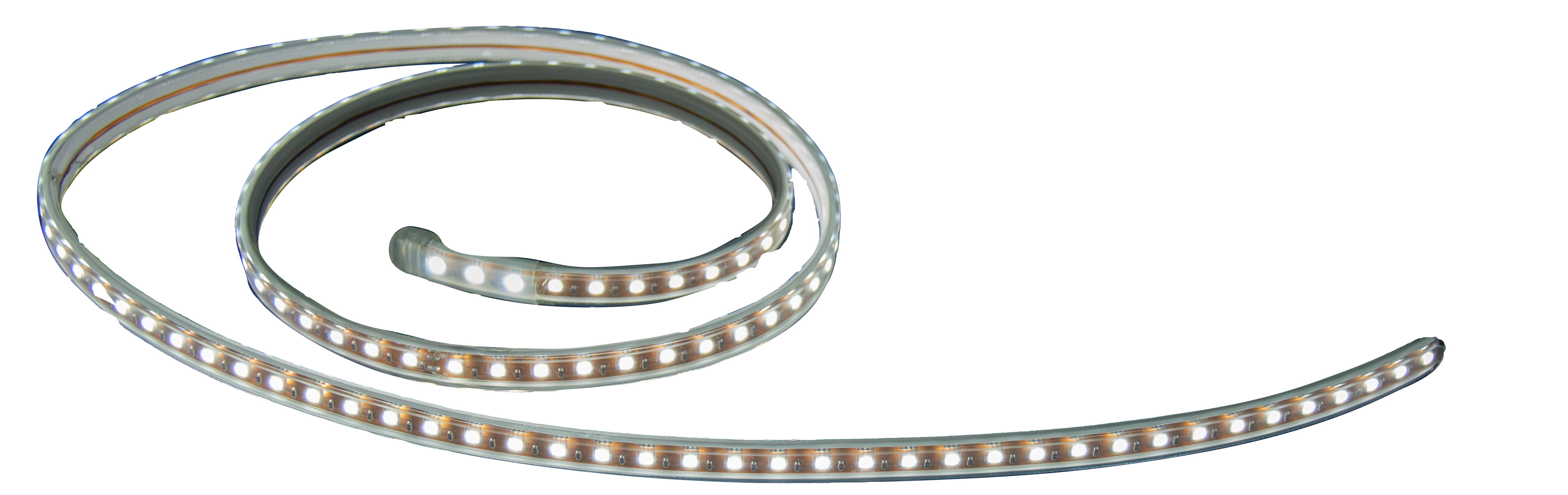

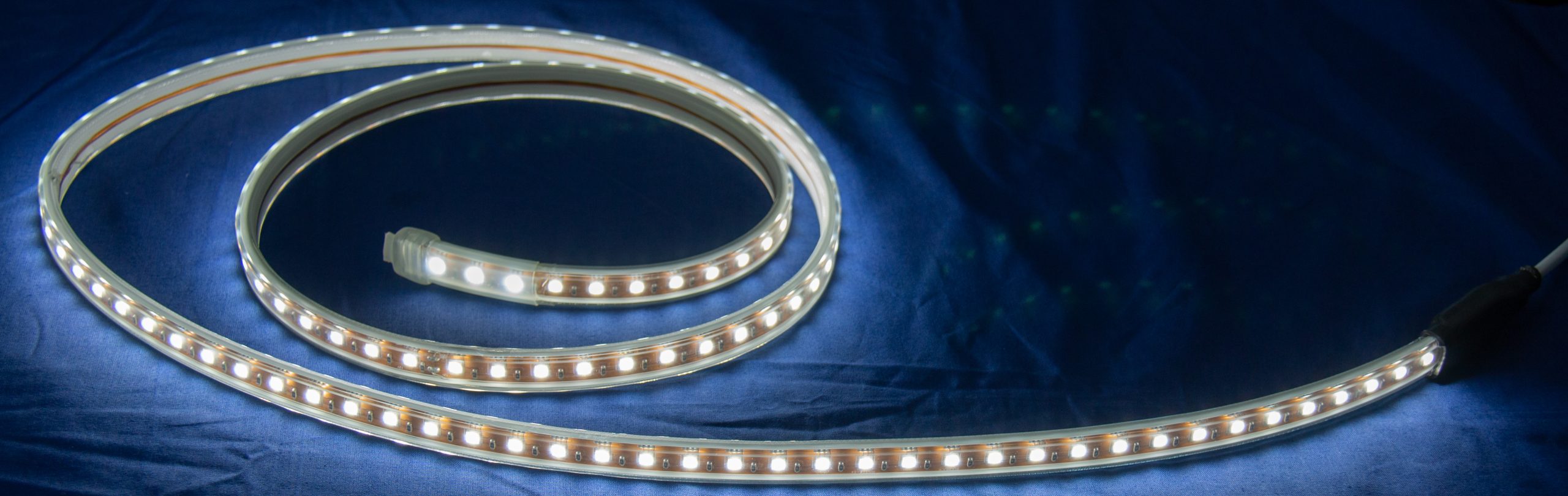

The RIS12*-Ex strip light is Intrinsically Safe and designed for area illumination in underground coal mines, petrochemical environments and underground hardrock mines. It is easy to mount and can be attached to machinery, walls or other objects. It is lightweight and can be carried if you need portable illumination.
It is powered by an external 12VDC I.S. power supply. There is a 2-wire lead at an end of the strip light to connect to a junction box or I.S. power supply directly.

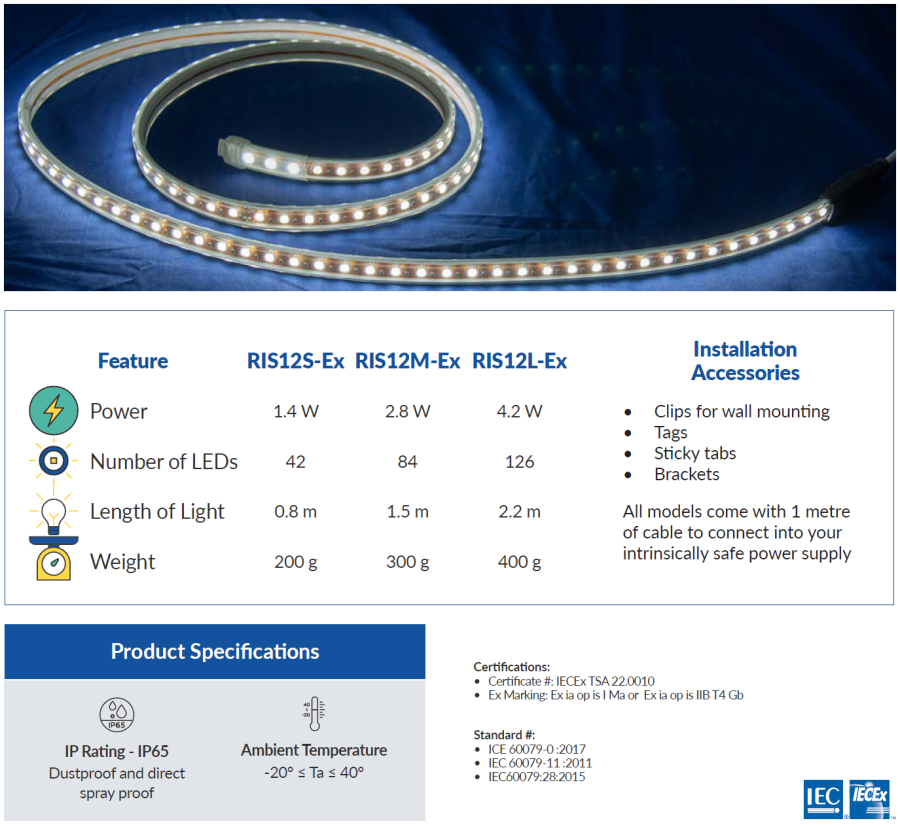

| Power Supply | 12 VDC |
|---|---|
| Power | 1.4W (RIS12S-Ex), 2.8W (RIS12M-Ex), 4.2W (RIS12L-Ex) |
| IP Rating | IP65 |
| Length | 0.8m (RIS12S-Ex), 1.5m (RIS12M-Ex), 2.2m (RIS12L-Ex) |
Download Roobuck-RIS12x-Ex: Brochure / Certification
